Features
-
Imported PC mask (cover) features high light transmittance, with superior resistance to yellowing and cracking.
-
Versatile mounting structural design allows for multiple installation options, ensuring effortless installation and maintenance.
-
Equipped with imported LED chips, featuring an extended lifespan, high lumen output, and minimal light depreciation.
-
Supports precise control via DMX512 digital signal technology.
-

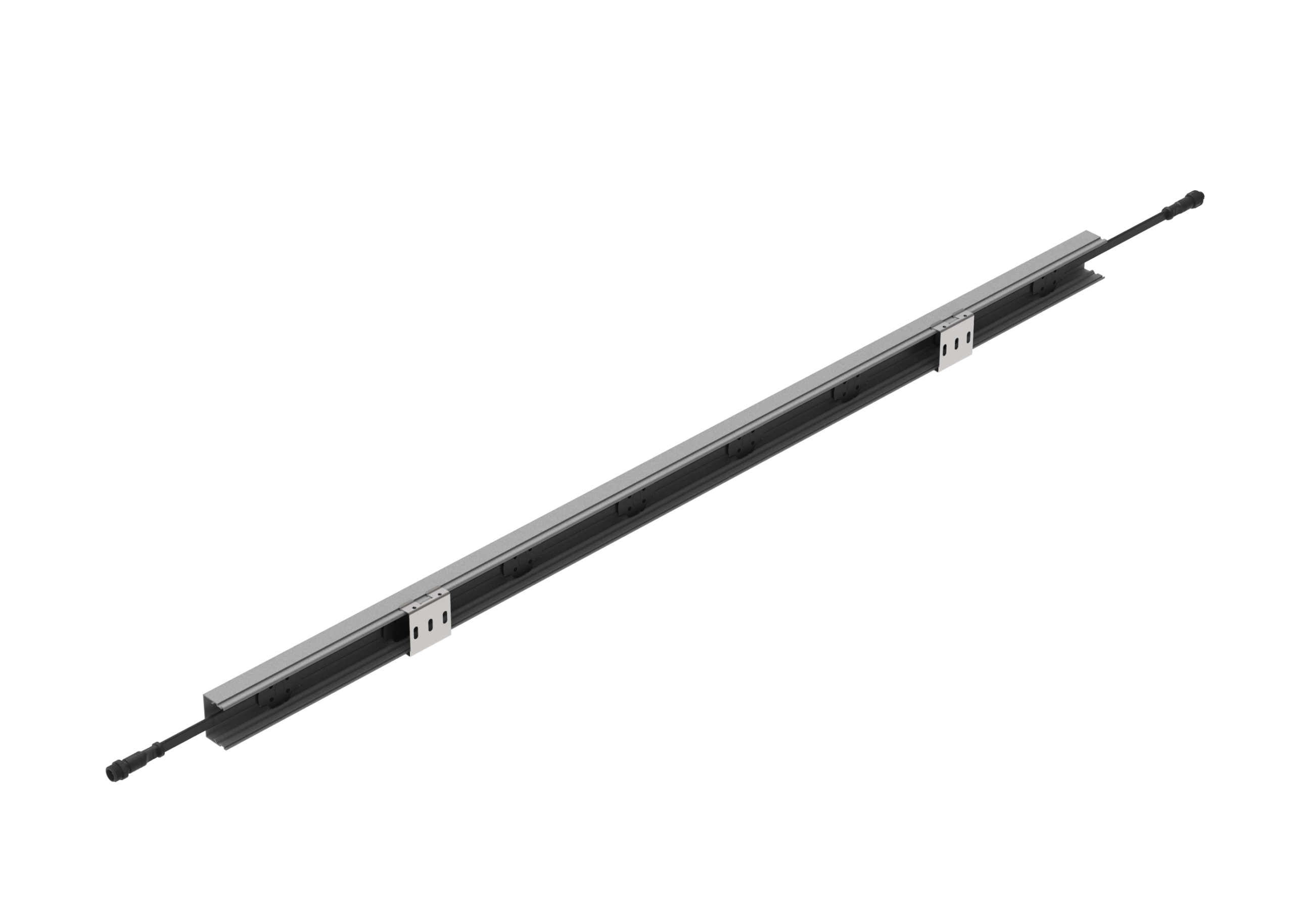

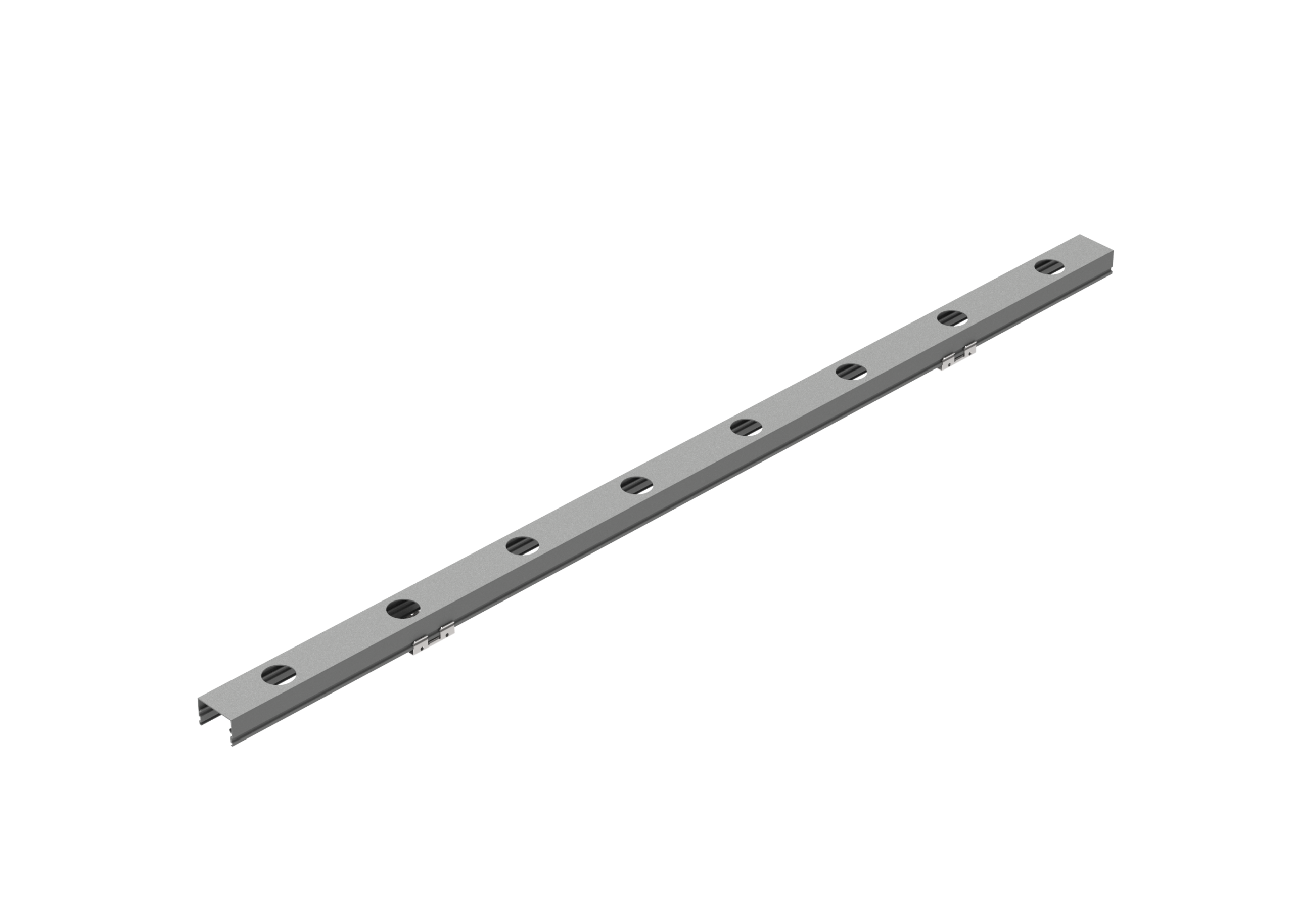

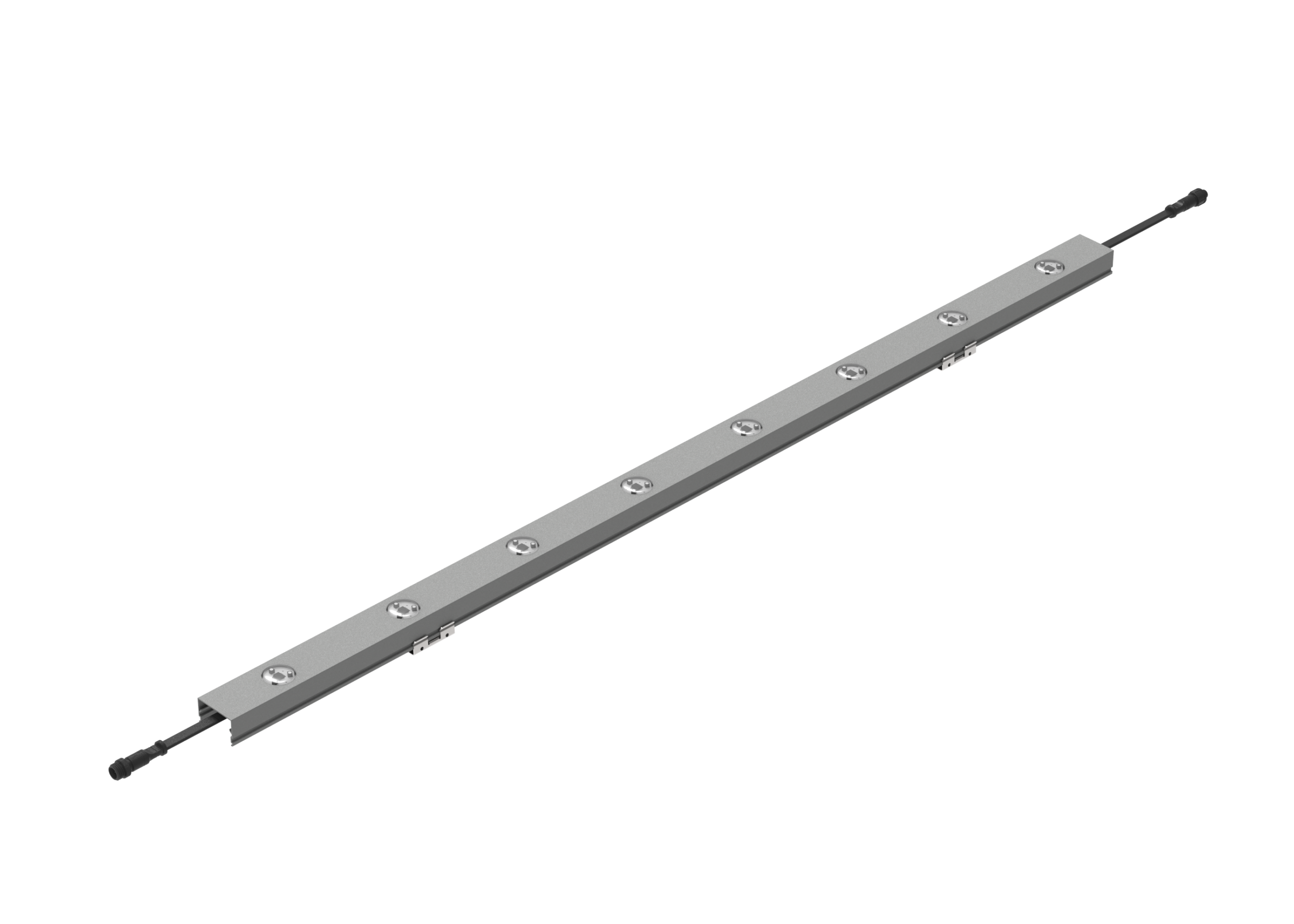

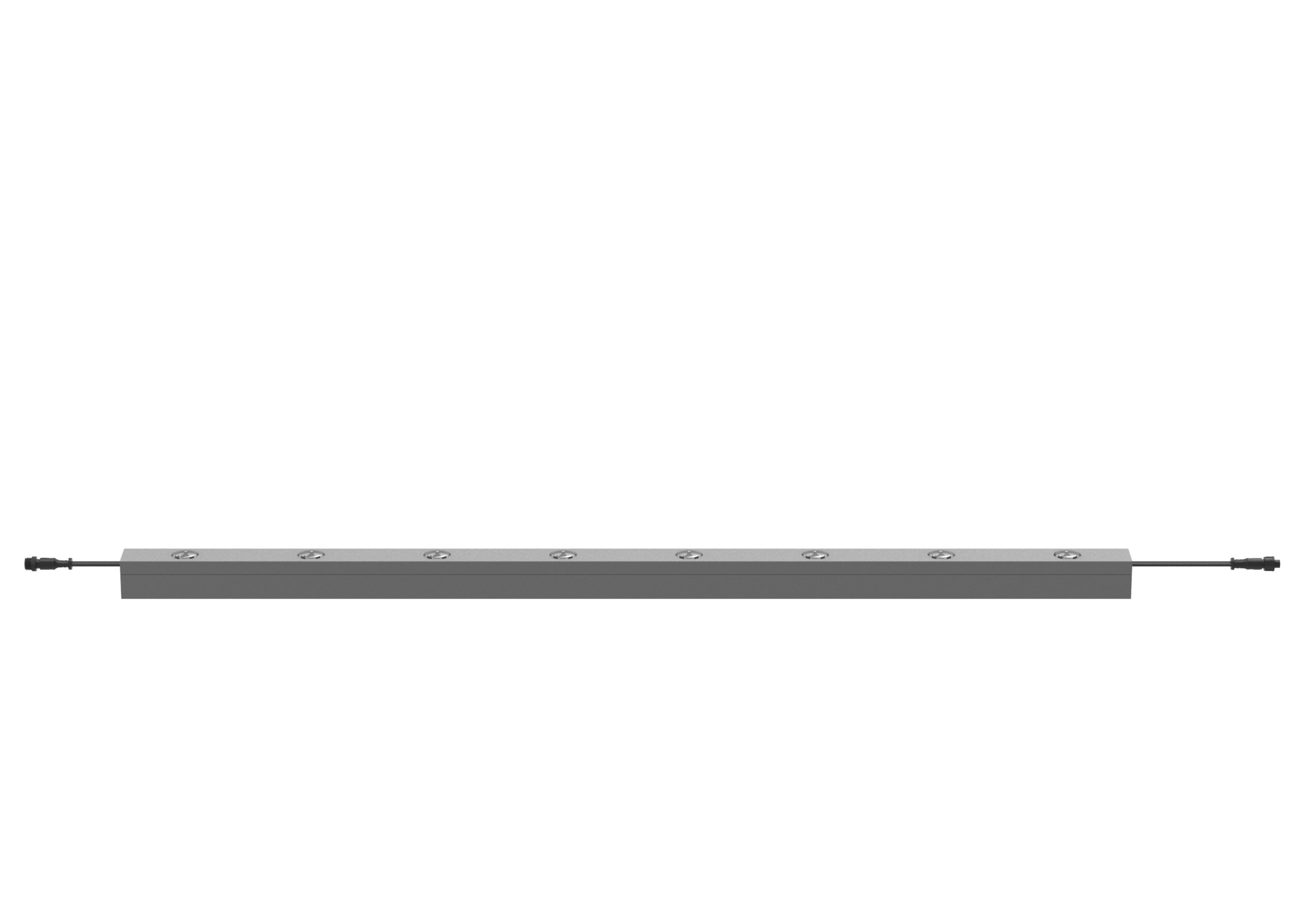

Can be paired with matching aluminum profiles/tracks to make installation even more convenient.
Parameters
| Color Temperature | Single color/RGB/RGBW |
| Rated Power | 0.6W-1.2W |
| Led Quantity | 3 |
| Led Light Source | |
| Input Voltage | DC12V |
| IEC | Safety Level III |
| Anti-glare baffle optional | No |
| lens Angle | 120° |
| Optical Lens | \ |
| Average Lifespan | 50000 hour |
| Control Method | Normally on/DMX512 |
| Pixels | 1 |
| Rated Current | 25-50mA |
| Power Factor | \ |
| Voltage Frequency | \ |
| 1 way max long distance | 120pixels |
| Connector Type | M12 |
| Initial Liminous Flux | 53.2lm |
| CRI | 80 |
| Luminous Efficiency | ≈88.69lm/w |
| Appearance Color | Black |
| Working Temperature | -30℃~55℃ |
| Working Humidity | 0%~95% |
| IP Rating | IP66 |
| Protection Type | Glue |
| Weight | 35g/pcs |
| Material of Fixture | PC |
| Cover Material | PC |
| Length(mm) | 41.2mm |
| Width(mm) | 35.2mm |
| Height(mm) | 22.2mm |
