Features
-
Premium-grade 6063 aviation aluminum with anodized and electrostatic powder-coated surface finish, delivering a highly sophisticated and premium texture.
-
Equipped with imported LED chips (light source), featuring an extended lifespan, high lumen output, and minimal light depreciation (excellent lumen maintenance).
-
Integrated fixture body with a fully waterproof design, utilizing a narrow-bezel glass bonding process to maximize the light-emitting surface area.
-

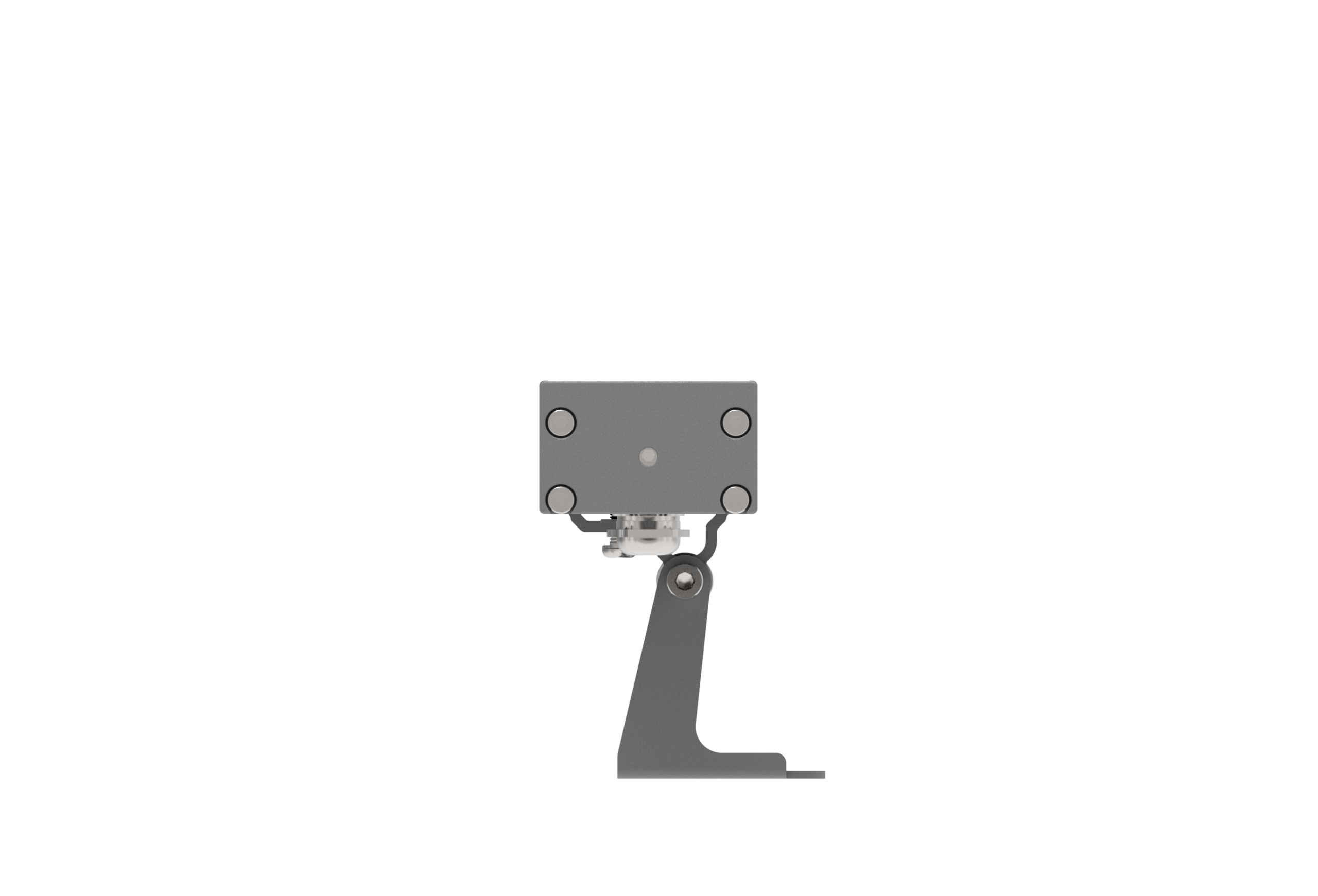

Thickened stainless steel brackets offer exceptional anti-oxidation and corrosion resistance, ensuring safety and reliability.
-
Supports precise control via DMX512 digital signal technology.
Parameters
| Color Temperature | Single color/RGB/RGBW |
| Rated Power | 18W/24W/36W |
| Led Quantity | 18/24/36 |
| Led Light Source | 3030/CERR |
| Input Voltage | 24V |
| IEC | Safety Level III |
| Anti-glare baffle optional | YES |
| lens Angle | 30°/ 45°/10*60° |
| Optical Lens | PC/Honeycomb anti |
| Average Lifespan | 50000 hour |
| Control Method | normally on |
| Pixels |
| Rated Current | 1.5A |
| Power Factor | |
| Voltage Frequency | |
| 1 way max long distance | 6pixels |
| Connector Type | M16 |
| Initial Liminous Flux | 2247.95lm |
| CRI | 80.5 |
| Luminous Efficiency | 95.74lm/w |
| Appearance Color | Fog silver/ iron grey |
| Working Temperature | -30℃~55℃ |
| Working Humidity | 0%~100% |
| IP Rating | IP66 |
| Protection Type | Structural Waterproofing |
| Weight | 1.285kg/m |
| Material of Fixture | 6063streched alluminum |
| Cover Material | Tempered glass |
| Length(mm) | 1003mm |
| Width(mm) | 42mm |
| Height(mm) | 25mm |
